Distal Tibial Intramedullary Nail (DTN)

Model:
T1100-59
Brand:
CZMEDITECH
Material:
Titanium
Certificate:
CE/ISO:9001/ISO13485
Transportation:
FedEx. DHL.TNT.EMS.etc

Availability:

Quantity:



Inquire Add to Basket

Specification

Brand

CZMEDITECH

Material

Titanium

Certificate

CE，ISO13485

Diameter

7/8mm

Length(long）

110/120/140mm

Delivery Time

3-7 days

Other

Customizable

Delivery Way

DHL/UPS/FEDEX/TNT/ARAMAX/EMS

Features & Benefits

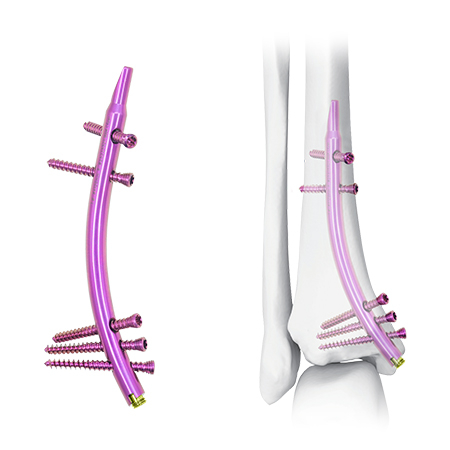

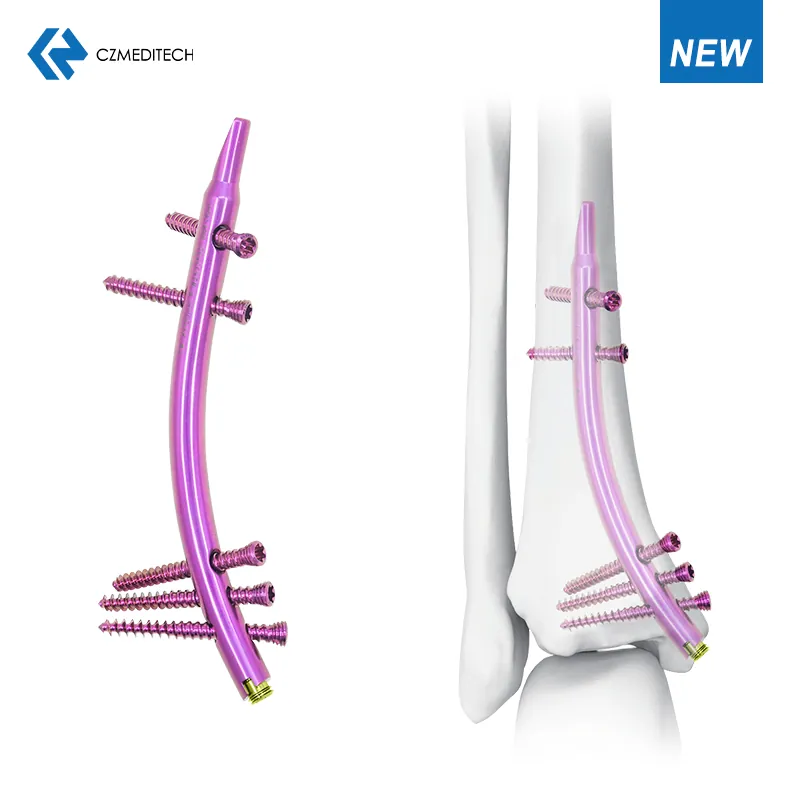

Distal Tibial Intramedullary Nail (DTN)

The Distal Tibial Intramedullary Nail (DTN) is indicated for a variety of tibial conditions, including simple, spiral, comminuted, long oblique, and segmental shaft fractures (particularly of the distal tibia), as well as distal tibial metaphyseal fractures, non-/mal-unions; it may also be employed, often with specialized devices, for managing bone defects or limb length discrepancies (such as lengthening or shortening).

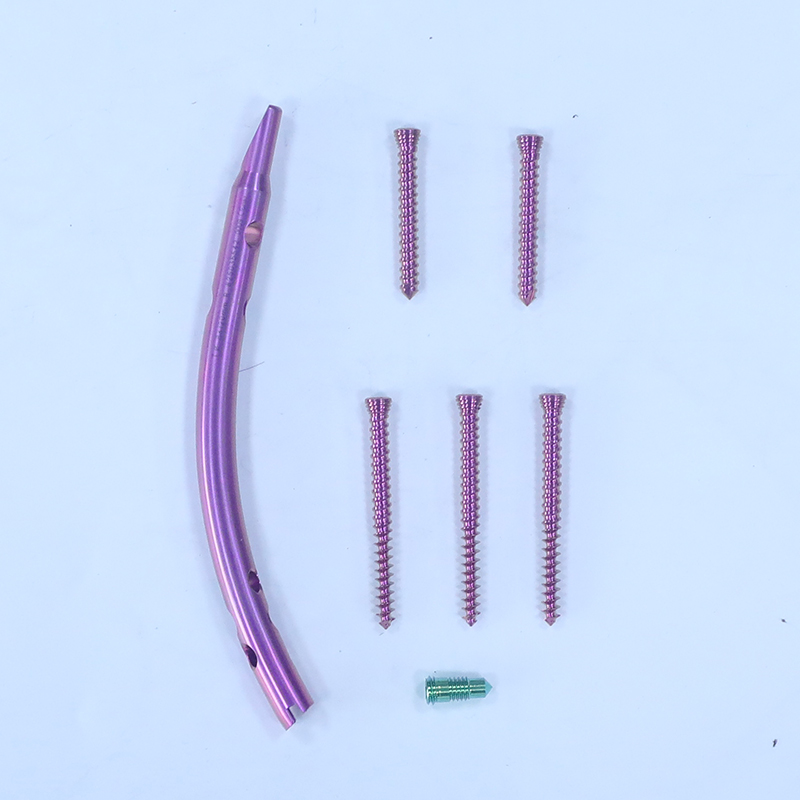

Main Nail

The Main Nail is offered in two diameters and three lengths (110mm, 120mm, 140mm). Left- and right-specific variants are available for each combination of diameter and length, yielding six distinct configurations.

The short version

The short version features cortical screw threads along the shaft, optimized for stabilization within cortical bone regions.Locking screws offer two diameters (φ3.5 and φ4.0) to accommodate diverse surgical needs.

The long version

The long version incorporates cortical and cancellous bone engagement at the epiphyseal end, providing enhanced stability in metaphyseal fixation. Locking screws offer two diameters (φ3.5 and φ4.0) to accommodate diverse surgical needs.

End Cap

The distal cap of the tibial intramedullary nail is available in two length specifications: 0mm and 5mm. This design allows for clinical flexibility, preventing soft tissue ingrowth while facilitating postoperative removal.The 0mm cap features an arrowhead shape, while the 5mm version incorporates a smooth surface and threaded tip for enhanced fixation.
