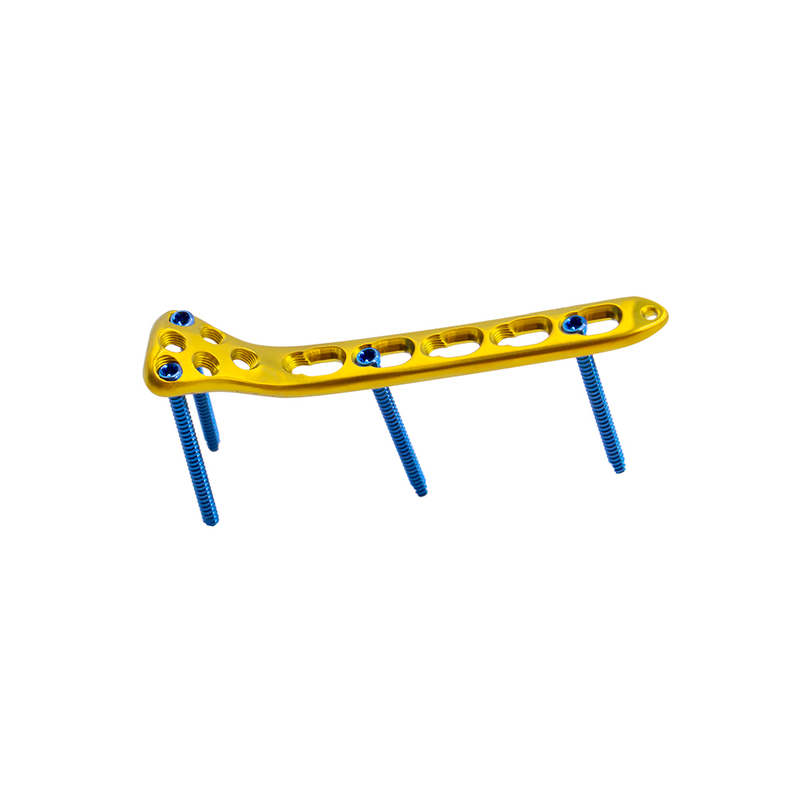

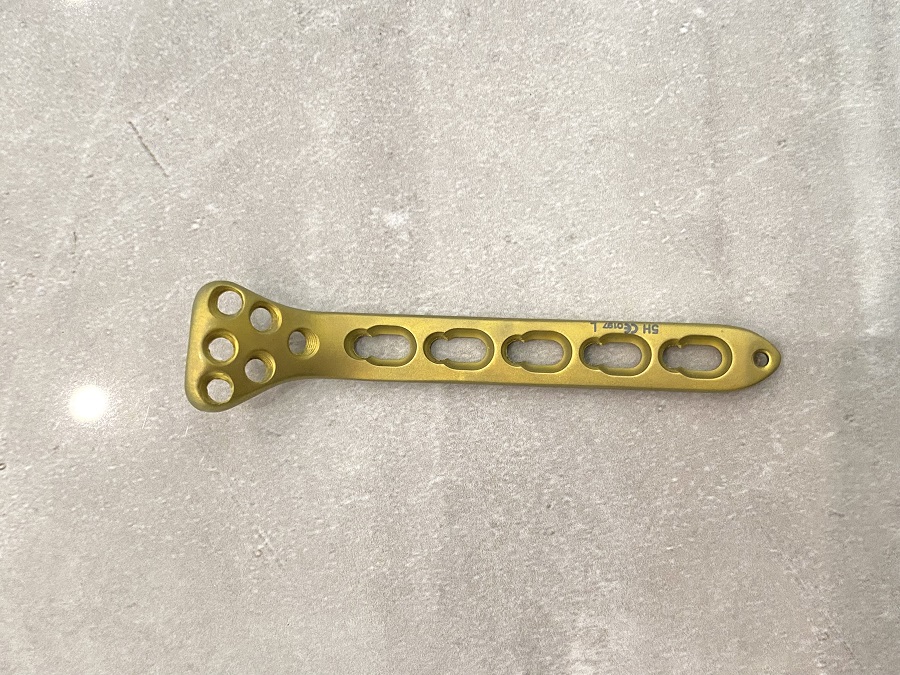

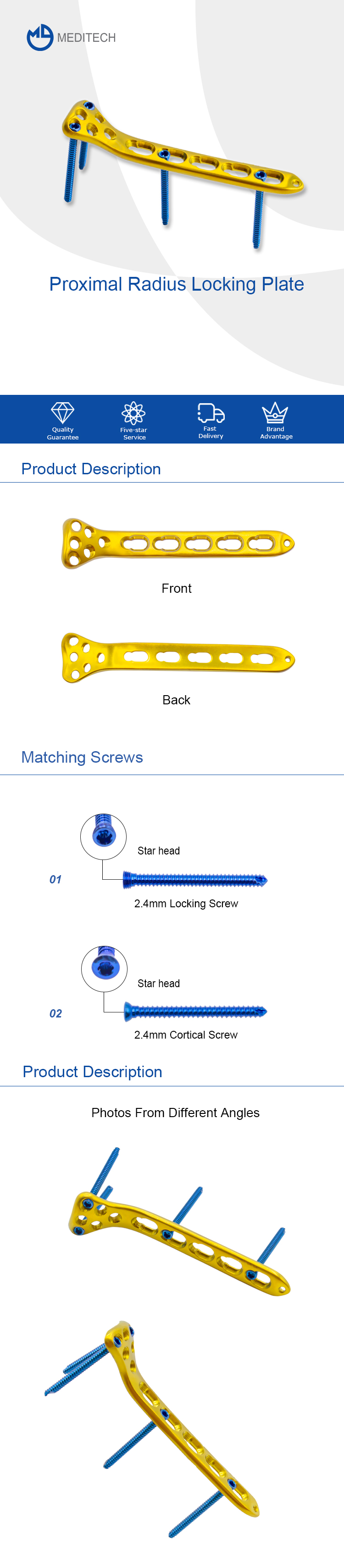

Proximal Radius Locking Plate

  • 5100-14
  • CZMEDITECH
Availability:
Quantity:

Product Description

Plate features

– Nine LCP Proximal Radius Plates available to address various fracture patterns of the proximal radius

– Plates are precontoured for anatomical fit

– Combi holes allow fixation with locking screws in the threaded section for angular stability, and cortex screws in the Dynamic Compression Unit (DCU) section for distraction. A fixed-angle construct provides advantages in osteopenic bone or multifragment fractures, where traditional screw purchase is compromised.

– Carefully apply for osteoporotic bone


Additional features

– Limited-contact design shaft with 2, 3, and 4 combi-holes

– The holes in the head of the plate accept 2.4 mm locking screws

– The shaft holes accept 2.4 mm locking screws in the threaded portion or 2.7 mm cortex screws and 2.4 mm cortex screws in the distraction portion

– Plates for radial head rim available in right and left plates with a 5º tilt to match the anatomy of the radial head

– Plates for radial head neck fit both the left and right side of the proximal radius


Proximal Radius Locking Plate


specifications

Products REF Specification Thickness Width Length
Proximal Radius Locking Plate                      (Use 2.4 Locking Screw/2.4 Cortical Screw) 5100-1401 3 holes L 1.8 8.7 53
5100-1402 4 holes L 1.8 8.7 63
5100-1403 5 holes L 1.8 8.7 72
5100-1404 3 holes R 1.8 8.7 53
5100-1405 4 holes R 1.8 8.7 63
5100-1406 5 holes R 1.8 8.7 72
