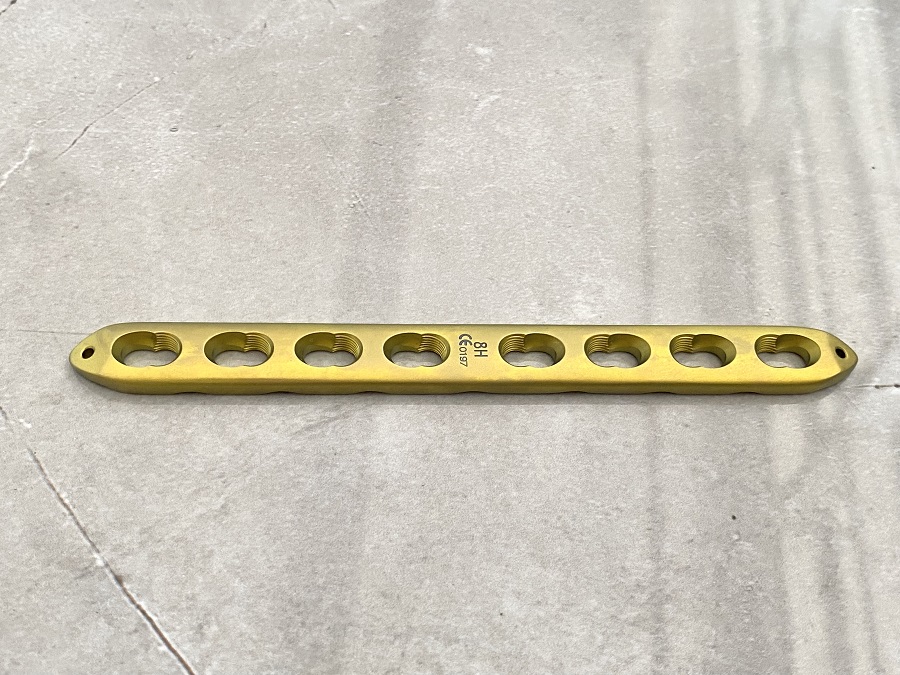

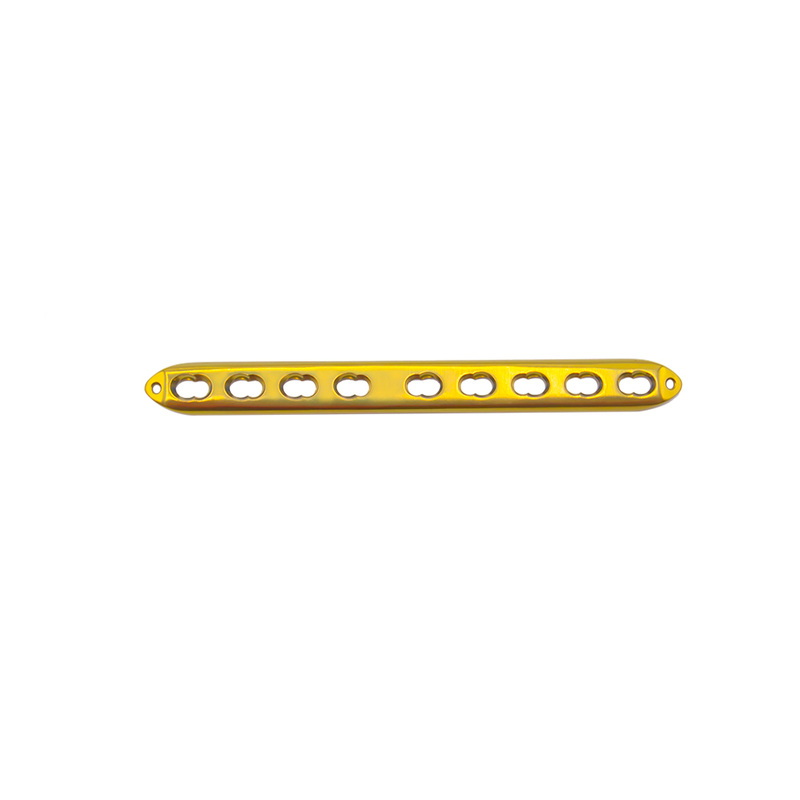

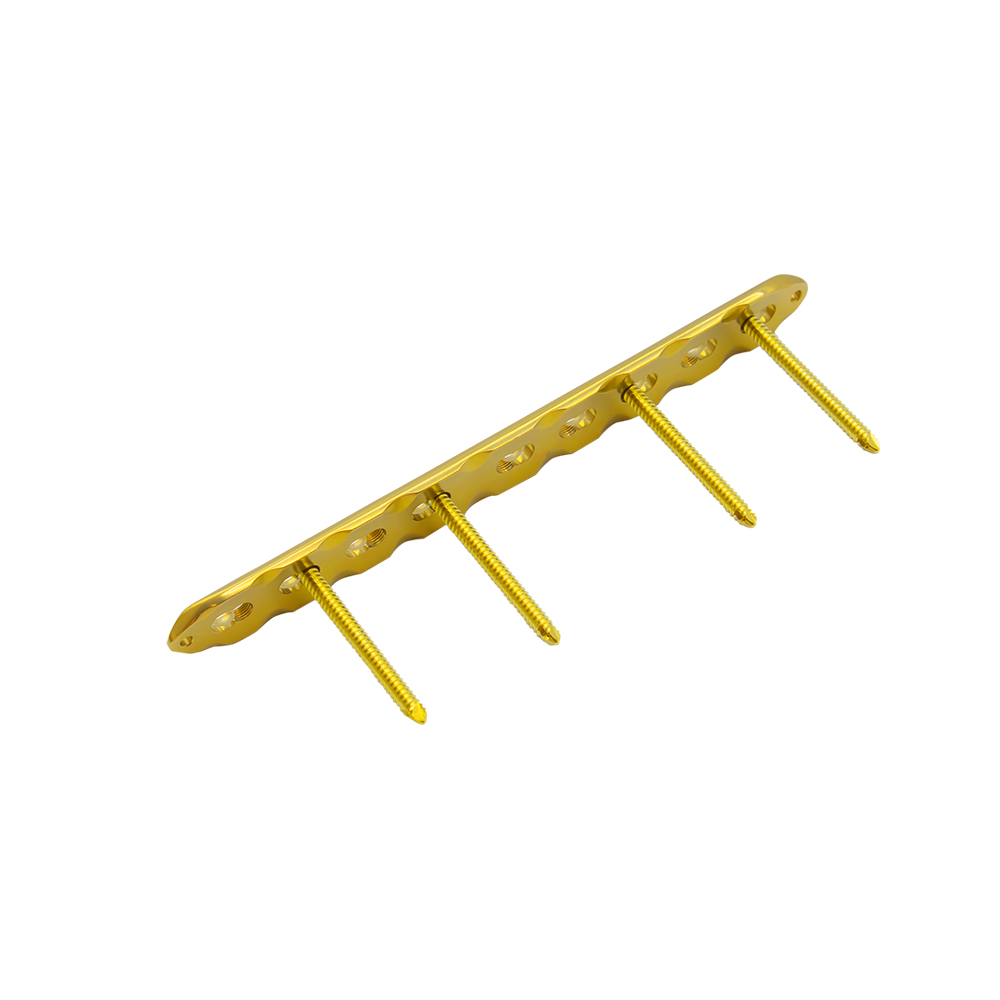

Humeral Shaft Straight Locking Plate

  • 5100-01
  • CZMEDITECH
Availability:
Quantity:

Product Description

What is Humeral Shaft Straight Locking Plate?

Humeral Shaft Straight Locking Plates are indicated for fractures and deformities in the shaft (middle, diaphyseal) part of the humerus bone.


Humerus fractures are % 3- 7 of all fracture types.


Features

  • Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.

  • Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the bone , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.

  • Locking the screw into the plate does not generate additional compression. Therefore, the periosteum will be protected and the blood supply to the bone preserved.

  • The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.

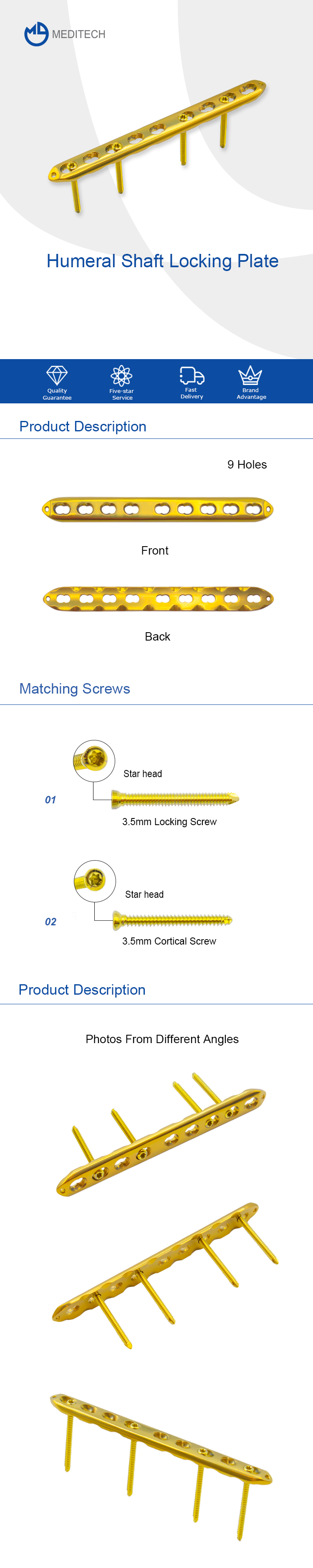

Humeral Shaft Straight Locking Plate

specifications

Products REF Specification Thickness Width Length
Humeral Shaft Locking Plate                          (Use 3.5 Locking Screw/3.5 Cortical Screw )
5100-0101 6 holes 3.6 13 92
5100-0102 7 holes 3.6 13 105
5100-0103 8 holes 3.6 13 118
5100-0104 9 holes 3.6 13 131
5100-0105 10 holes 3.6 13 144
5100-0106 12 holes 3.6 13 170
5100-0107 14 holes 3.6 13 196
