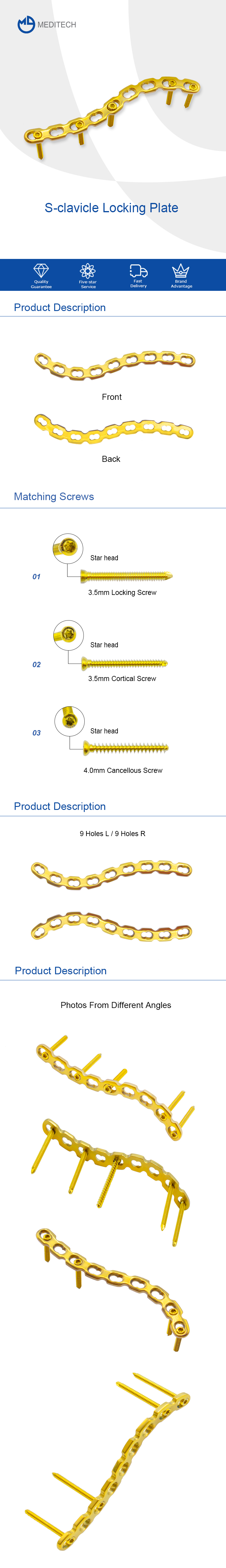

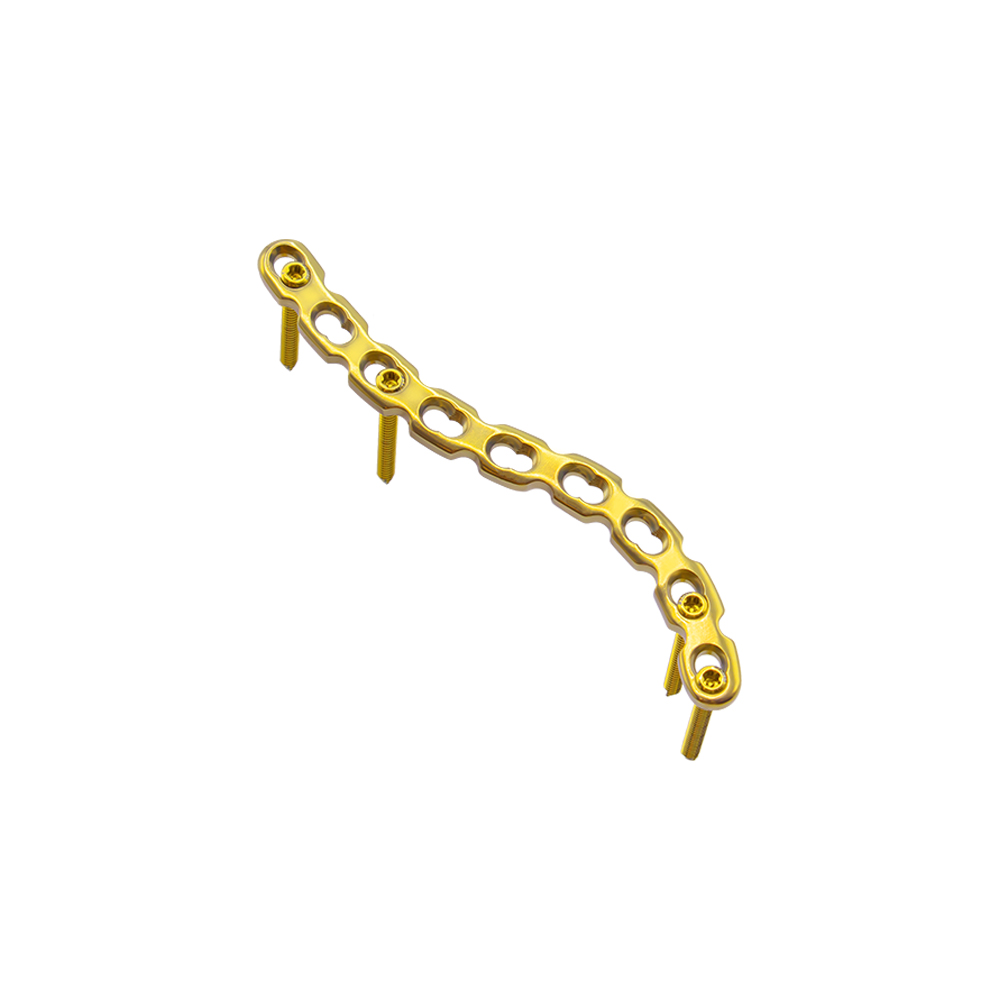

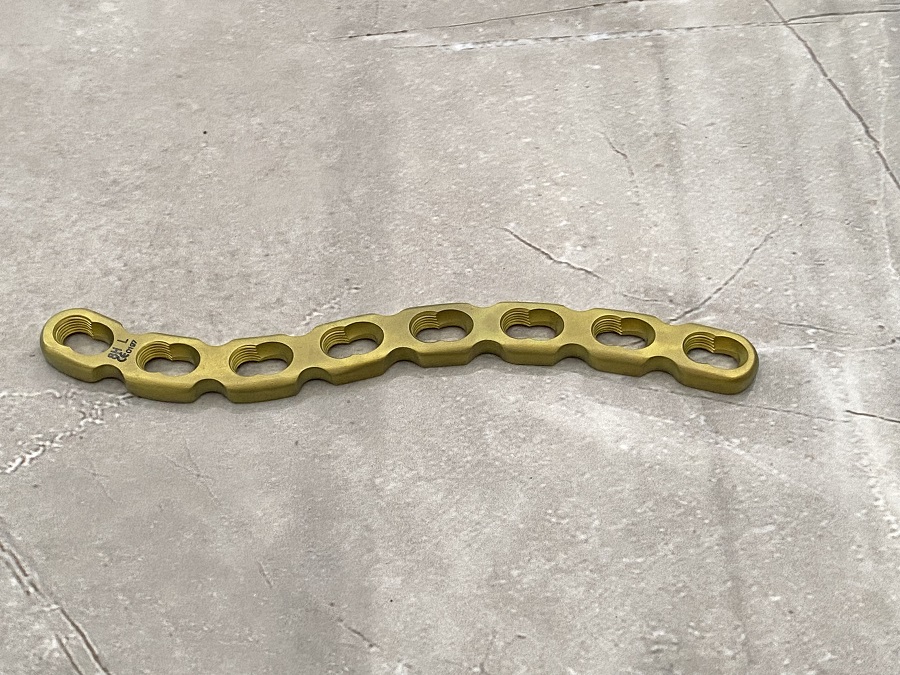

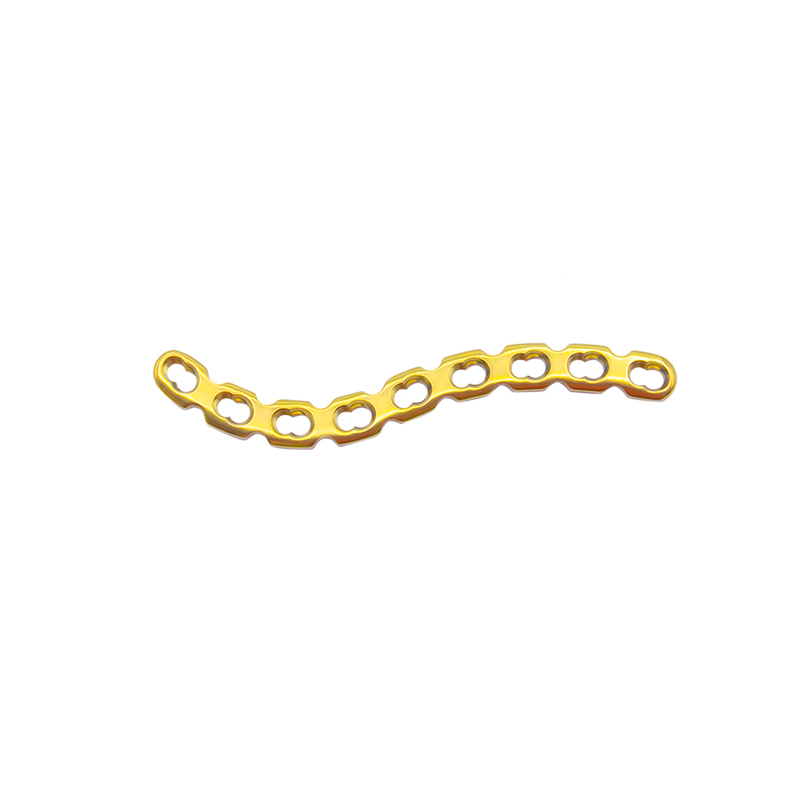

S-clavicle Locking Plate

  • 5100-04
  • CZMEDITECH
Availability:
Quantity:

Product Description

What is S-clavicle Locking Plate?

The Clavicle Hook Plate provides a single solution for fixation of both lateral clavicle fractures and acromioclavicular joint injuries. This plate and screw construct allows early rotational mobility of the shoulder.


The Clavicle Hook Plate is indicated for:

• Lateral clavicle fractures


• Dislocations of the acromioclavicular joint


Clavicle Hook Plates Features

• Dynamic compression screw holes accept 3.5 mm cortex and 4.0 mm cancellous bone screws


• Anterolateral screw hole provides additional options for screw fixation in the lateral clavicle


• Hook provides additional support to both lateral clavicle fractures and acromioclavicular joint dislocations


• Plates available with 5、6、7、8、9 and  10 holes


• Precontoured in left and right plates


• Available in commercially pure (CP) titanium or 316L stainless steel


• Offset hook design to avoid insertion of hook into acromioclavicular ligament

S-clavicle Locking Plate

specifications

Products REF Specification Thickness Width Length

S-clavicle Locking Plate

 (Use 3.5 Locking Screw/

3.5 Cortical Screw/

4.0 Cancellous Screw )

5100-0401 5 holes L 3 10.5 54
5100-0402 6 holes L 3 10.5 67
5100-0403 7 holes L 3 10.5 81
5100-0404 8 holes L 3 10.5 94
5100-0405 9 holes L 3 10.5 107
5100-0406 10 holes L 3 10.5 131
5100-0407 5 holes R 3 10.5 54
5100-0408 6 holes R 3 10.5 67
5100-0409 7 holes R 3 10.5 81
5100-0410 8 holes R 3 10.5 94
5100-0411 9 holes R 3 10.5 107
5100-0412 10 holes R 3 10.5 131
