2.0mm Maxillofacial Plate System

The 1.5/2.0mm Frontal System is a micro-locking bone grafting system designed for the fine bones of the face.
It is made of pure titanium, which is ultra-thin, low-cut, easy to shape and biocompatible.
Its core advantage is that it provides sufficient stability to fix fractures or osteotomies in the mid-face, periorbital, nasal, maxillary and non-primary weight-bearing areas of the mandible, while minimising soft tissue irritation and the risk of implant exposure.

Model:
3128-04
Brand:
CZMEDITECH
Material:
Titanium
Certificate:
CE/ISO:9001/ISO13485
Transportation:
FedEx. DHL.TNT.EMS.etc

Availability:

Quantity:



Inquire Add to Basket

Product Description

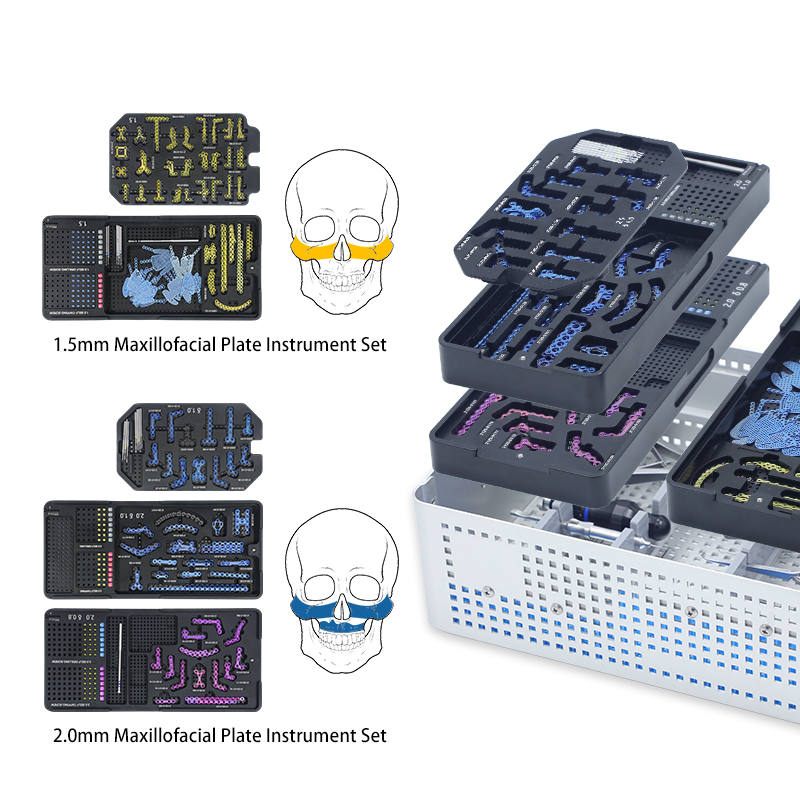

2.0mm Maxillofacial Plate System

new platingset includes all the features of acomprehensive CMF trauma systemwith the ability

to customize for eachcustomers'needs.lCON upgradesinclude improved instrumentation,

integrated mesh drawer,and multipurpose auxiliary tray.

Theentire system is housed in a lighter-weight,

sleeker case with intuitiveplating blocks and screw modules.

Combination holes

A hole with both a traditional power pressurised section and a locking threaded section, providing flexibility.

Pure locking holes

Only locking screws can be screwed in.

Pure pressurised holes

Pressurisation can be achieved by eccentric screwing in of screws (relatively rare in microsystems).

Low cutout

Smooth plate with rounded edges and screw heads countersunk in the plate, minimising the risk of soft tissue irritation and exposure.

未标题-1_42

额面详情_01

Product Details

400×250像素图片区域

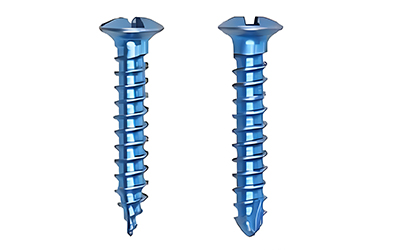

Screws

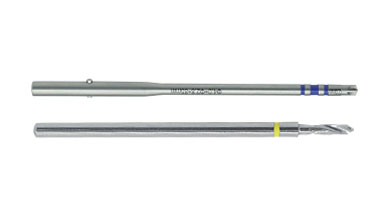

For self-tapping screws, it is necessary to drill the holes using a depth-limiting drill bit (matching the core diameter of the screw, e.g. 1.1mm, 1.5mm). Then screw in the self-tapping screws.

Self-drilling screws (with cutting edge at the tip) can be screwed in directly, which can improve the convenience of screwing in under the premise of safety.

400×250像素图片区域

Thread design

Cortical bone thread design, taking into account the screwability and bone holding effect.

400×250像素图片区域

Screw head design

adopts a cross-slotted head design, the cross structure can make the head as thin as possible, make the undercut, and reduce the soft tissue irritation. The corresponding cross driver is designed as a self-holding structure. It is convenient to hold the screw during surgery.

400×250像素图片区域

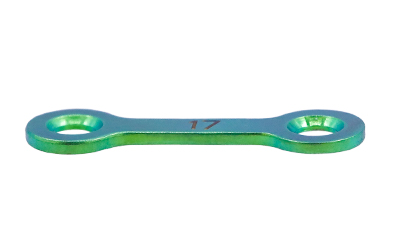

Plate design

provides 0.6/0.8/1.0 plate thickness, corresponding to 1.5/2.0 diameter screws, to meet the requirements of fixation in different parts of the skull. Dozens of plate shapes are available, the plate body is easy to be shaped and has great freedom in surgery.

400×250像素图片区域

Screw length

Screw length is usually between 4mm and 16mm. The choice depends on the thickness of the bone block and the need to ensure that the screw is screwed in to provide optimal bone holding force.

Product Advantages

Video

Product Advantage

SCREWS

2.0MM DIAMETERSELF TAPPING SORENS

1.8MIM AND 1.9MM DIAMETER SELF DRILLING SOR

EMERGENCY SCREWNS ARE AVAILABLE

TITANIUM ALLOY FOR CT/IRI COMPATIBILITY

PLATES

LOW PROFILE INTERFACE WITH SCREWS

FOR EXCELLENT COSMETICRESULT

EXTENSIVE SELECTION OF CONFIGURATIONS

PURETITANIUM

DRILL BITS

DRILL BITS AVAILABLE FOR HAND

ORPOWVERDRIVERS

MEDICAL GRADE STAINLESS STEEL

.

TRAYS

MODULAR

CUSTOMIZABLE

LGHTWEISHT AND DURABLE,COLOR CODED FOR EASE OF USE

INSTRUMENTS

COMPACT

EASY TO USE

TWO SZES OF SCEDRNERHANDLES FOR COMFORT

BIOMESH°

CONTOURABLE IN THREE DIMENSIONS

AVALABLEIN SEVERAL SIZES

PURE TTICANIUMI
